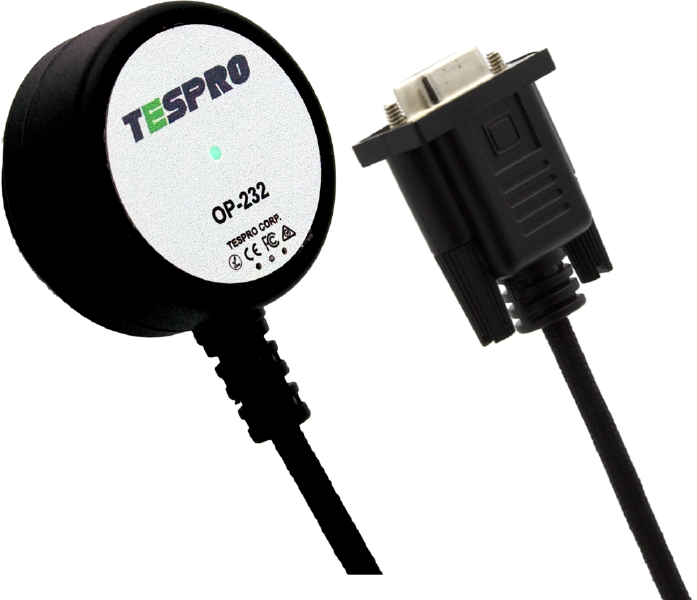

OP-232

Optical Probe for Meter Communication

images/products/tespro/OP-232.hero.png

OP-232 Optical Probe serves as an interface, communicating via infrared waves with utility meters, or any other device equipped with an optical port.

  • Ultrasonic welding ensures a robust housing for the product, water proof and dust proof.
  • Nylon braided cable enhancing durability and reliability.

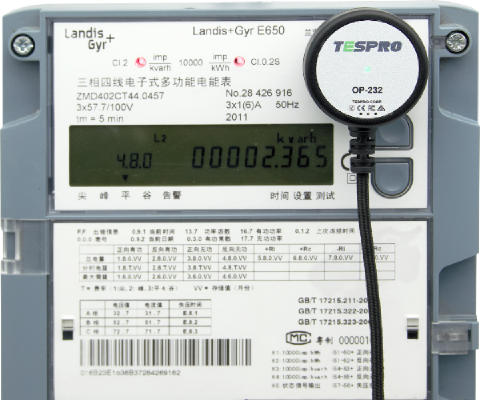

    OP-232-IEC Optical Probe on a Landis & Gyr E650 Meter
  • No external power supply required.
  • Work with your existing device and software, no additional integration needed.
  • Supports transparent mode.
  • The infrared optical filter can block ambient light interference without compromising the device’s sensitivity to IR.

Supports Android, Windows, MacOS, Linux

Certifications

Models

Understanding the Differences Between IEC 62056-21 and ANSI C12.18

ANSI STANDARD

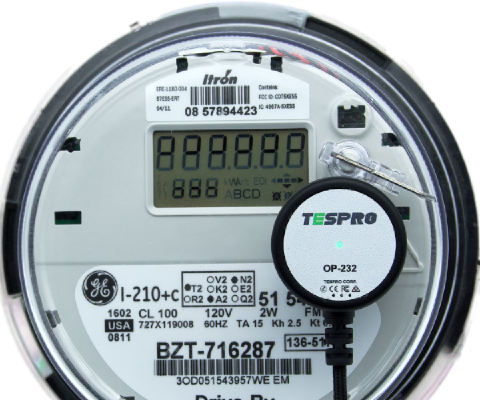

 OP-232-ANSI
 Complied with ANSI C12.18
images/products/tespro/OP-232-ANSI.app.png
ANSI STANDARD
 OP-232-IEC
 Complied with IEC 62056-21
images/products/tespro/OP-232-IEC.app.png

Get a Free Sample

With CA$68(US$50) shipping cost, we ship requested free sample world wide.

Tehnical Specifications
Standard IEC 62056-21(IEC 61107)
ANSI C12.18 Type 2
DLMS
Connector RS232-DB9 integrated connector
Communication Speed 300bps ~ 57,600bps
Magnet Attachment Magnetic Force N4.0
Complied with IEC 62056-21(IEC 61107) or ANSI C12.18
Indicators 1 Indicator with dual display:
LED Red: Transmitting
LED Green: Receiving
Weight 75gr
IR Radiation 940nm
IR Communication Distance 0 ~ 80mm
IR Sensor Wavelength 700~1100nm
Voltage 3.3 ~ 5V
Cable Length 2 meters (6.5 inch)
Cable extension available
Casing Material Polycarbonate
Protection Class IP67
Operating Temperature -30°C ~ 80°C (-22°F - 176°F)

dimension

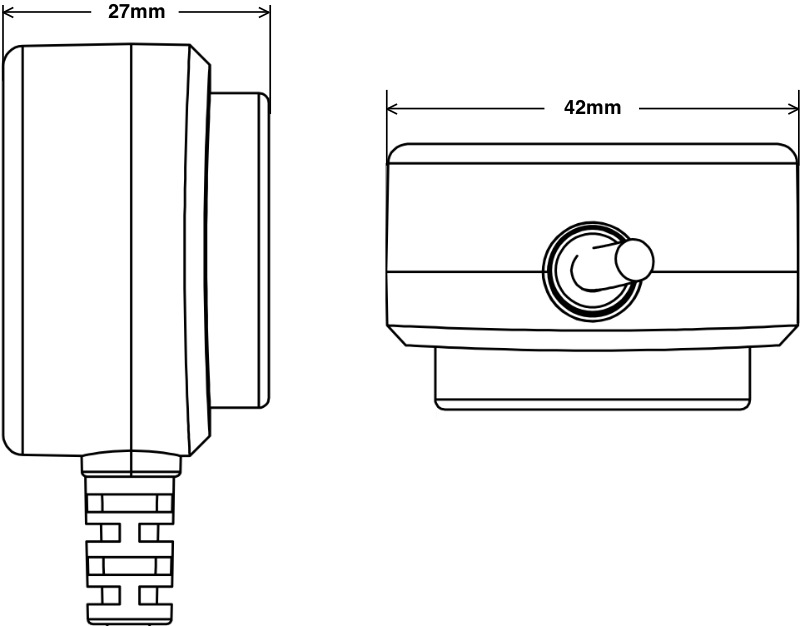

OP-232-IEC

OP-232-IEC Dimension

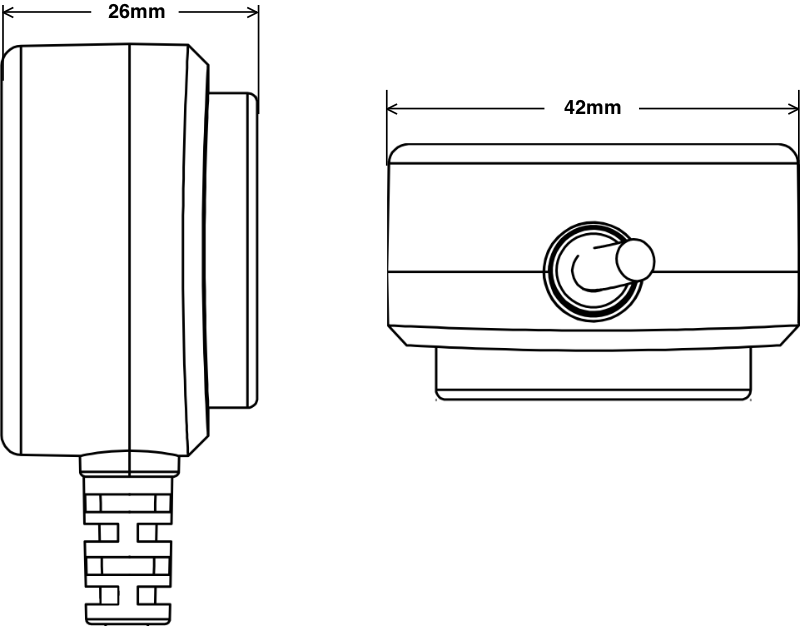

OP-232-ANSI

OP-232-ANSI Dimension
