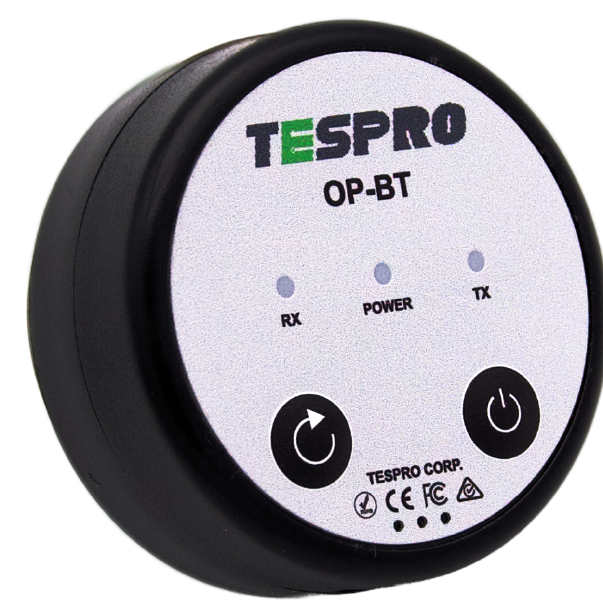

OP-BT

Optical Probe for Meter Communication

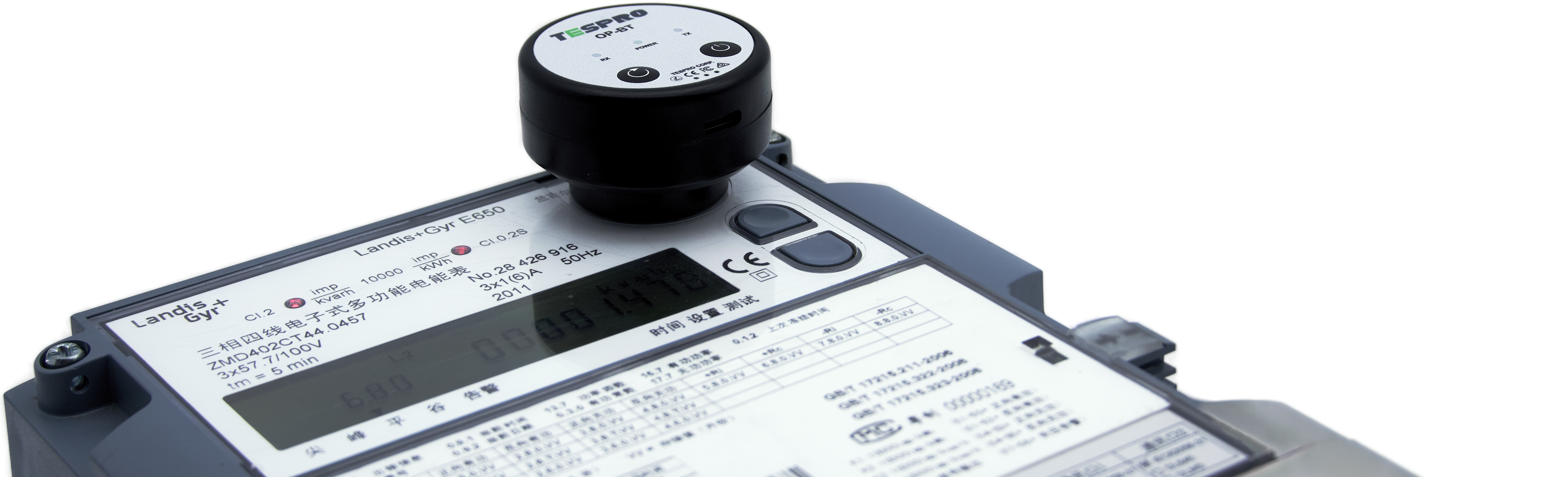

OP-BT Bluetooth Optical Probe serves as an interface, communicating via infrared waves with utility meters, or any other device equipped with an optical port.

Supports transparent mode.
Automatically detects baud rate, by support of Mode E & Mode C.
High-capacity battery guarantees 100-day in hibernate mode.
The infrared optical filter can block ambient light interference without compromising the device’s sensitivity to IR.
Transmission power adjustable.
Battery life extended with battery protection feature.
Supports bluetooth renaming.
Simple firmware upgrade by bluetooth or USB cable.

Bluetooth 5.0
BLE

75 Working Hours
10,000 Meters/single charge

Support Android, iOS, Windows, MacOS, Linux

Certifications

Key Features

IEC and ANSI Compliant
Bluetooth 5.0 & BLE
Working Hours: 68 Hours

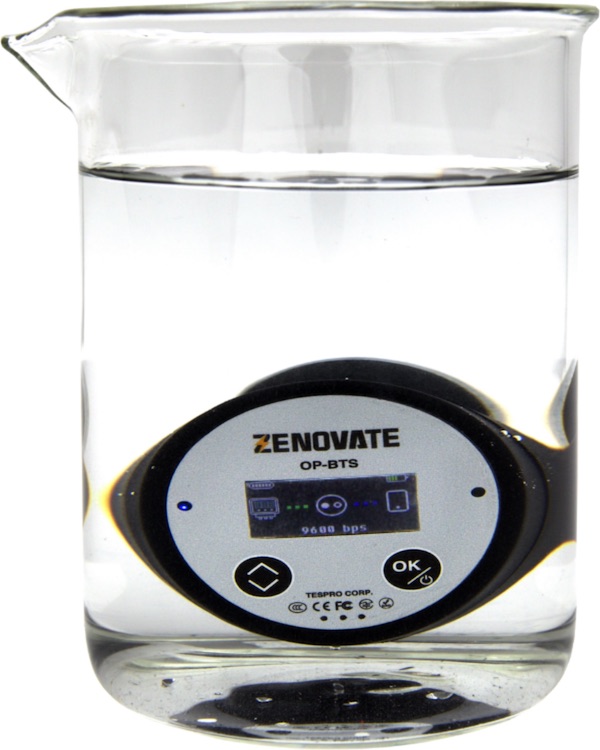

Protection Class: IP67

Standard	IEC 62056-21(IEC 61107), ANSI C12.18 Type 2, DLMS
Bluetooth Standard	Bluetooth 5.0, BLE+SPP, 2.4G
Communication Speed	300bps ~ 57,600bps
Default Baud Rate	9600bps, supports IEC dynamic baud rate
Max Communication Rang	10 Meters
Magnet Attachment	Magnetic Force N4.0, Complied with IEC 62056-21(IEC 61107) or ANSI C12.18
Indicators	3 (Power/Battery, Bluetooth Status, RX, TX)
Weight	59gr
Battery	Li-Po, 3.7V, 1050mAh
Battery Charging	4.5 Hours, 2.5 Hours(fast charge)
Standby Hours	72 Hours
Working Hour	68 Hours
Continuous Communication	58 Hours
Hibernate Mode	100 Days
IR Radiation	940nm
IR Communication Distance	0 ~ 80mm
IR Sensor Wavelength	700~1100nm
Voltage	3.7 ~ 4.2V
Power Adapter	AC 85 ~ 220V, DC 5V
Cable Length	1 meters (3 feet 3⅜ inch)
Casing Material	Polycarbonate
Protection Class	IP67
Operating Temperature	-30°C ~ 80°C (-22°F - 176°F)
OS compatibility	iOS, Android, Linux, Microsoft Windows, Mac OS X, Windows CE
USB & Driver	USB Type-C, 2.0 standard
Firmware	Upgradable, via bluetooth or USB cable

Models

What's the different between ansi and iec standard?

Understanding the Differences Between IEC 62056-21 and ANSI C12.18

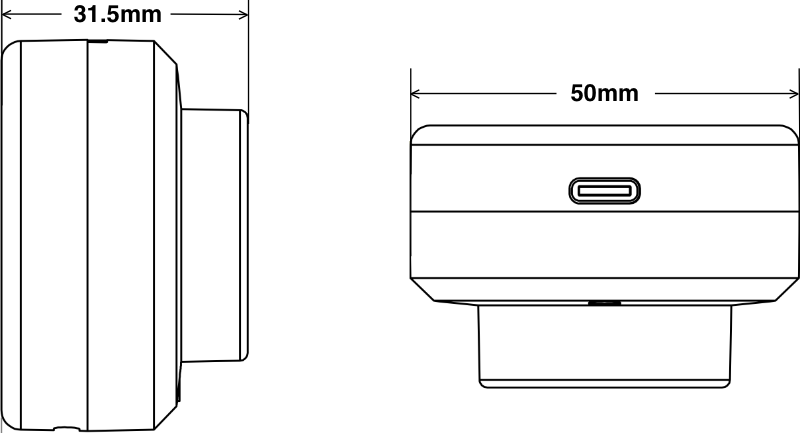

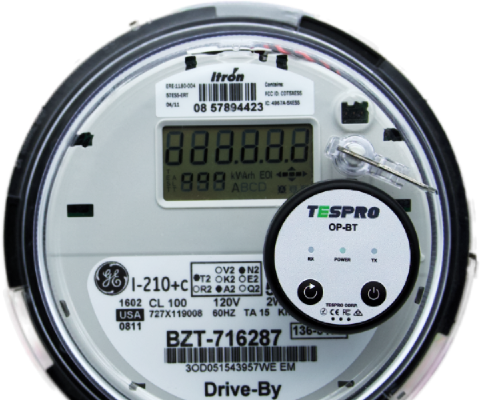

OP-BT-ANSI

Complied with ANSI C12.18
images/products/tespro/OP-BT-ANSI.app.png

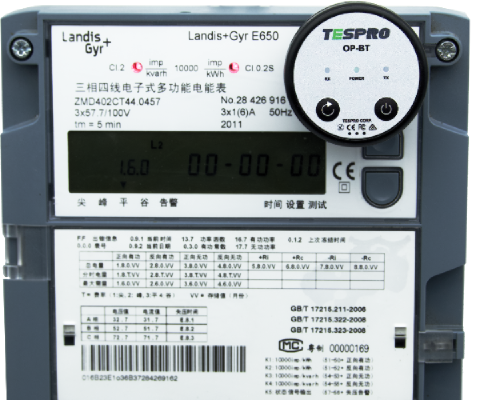

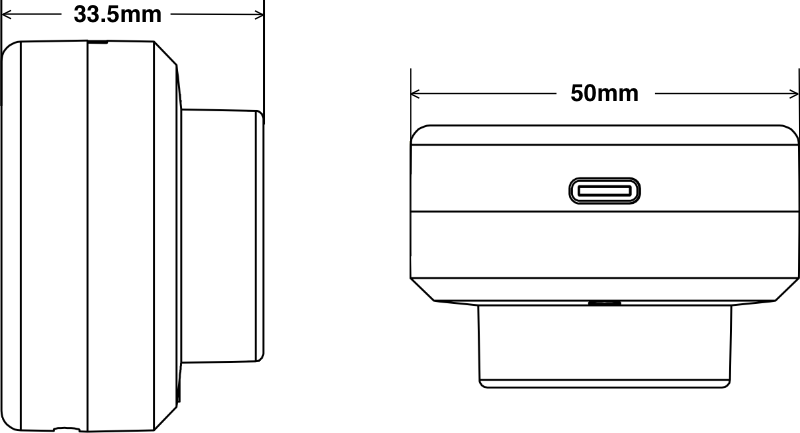

OP-BT-IEC

Complied with IEC 62056-21
images/products/tespro/OP-BT-IEC.app.png

Get a Free Sample

With CA$68(US$50) shipping cost, we ship requested free sample world wide.

Tehnical Specifications


Standard	IEC 62056-21(IEC 61107) ANSI C12.18 Type 2 DLMS
Bluetooth Standard	Bluetooth 5.0 BLE+SPP 2.4G
Communication Speed	300bps ~ 57,600bps
Default Baud Rate	9600bps, supports IEC dynamic baud rate
Max Communication Rang	10 Meters
Magnet Attachment	Magnetic Force N4.0 Complied with IEC 62056-21(IEC 61107) or ANSI C12.18
Indicators	3 (Power/Battery, Bluetooth Status, RX, TX)
Weight	59gr
Battery	Li-Po, 3.7V, 1050mAh
Battery Charging	4.5 Hours 2.5 Hours(fast charge)
Standby Hours	72 Hours
Working Hour	68 Hours
Continuous Communication	58 Hours
Hibernate Mode	100 Days
IR Radiation	940nm
IR Communication Distance	0 ~ 80mm
IR Sensor Wavelength	700~1100nm
Voltage	3.7 ~ 4.2V
Power Adapter	AC 85 ~ 220V DC 5V
Cable Length	1 meters (3 feet 3⅜ inch)
Casing Material	Polycarbonate
Protection Class	IP67
Operating Temperature	-30°C ~ 80°C (-22°F - 176°F)
OS compatibility	iOS Android Linux Microsoft Windows Mac OS X Windows CE
USB & Driver	USB Type-C 2.0 standard
Firmware	Upgradable via bluetooth or USB cable
