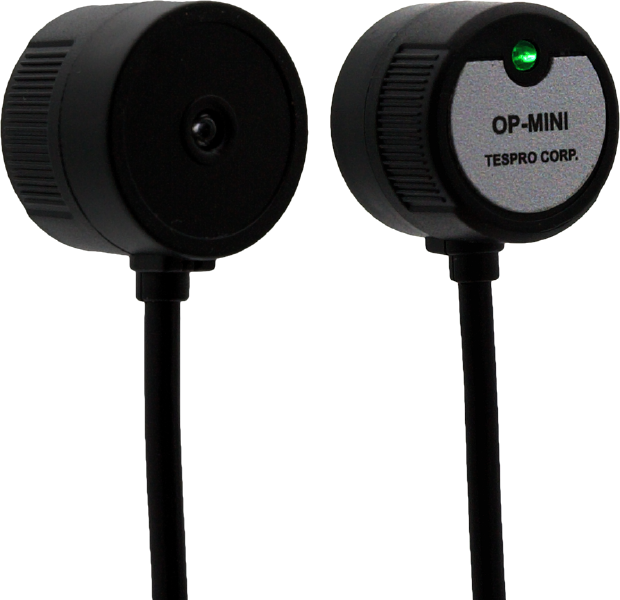

OP-MINI

Optical Probe for Energy Monitoring

images/products/tespro/OP-MINI.hero.png

Available Connectors

Tehnical Specifications
Spectrum From IR to light
Connector Unterminated by default, with 10 connectors to choose from
Indicators 1 Indicator with dual display:
LED Red: Transmitting
LED Green: Receiving
Output Pulse output, synchronized with the LED light pulses.
Power DC 5-12V
Cable 2 meters(6.5 feet), extension available
Attachment 3M double side tape
Weight 40gr
Casing Material Polycarbonate
Protection Class IP67
Operating Temperature -30°C ~ 80°C
