OP-TTL

Optical Probe for Meter Communication

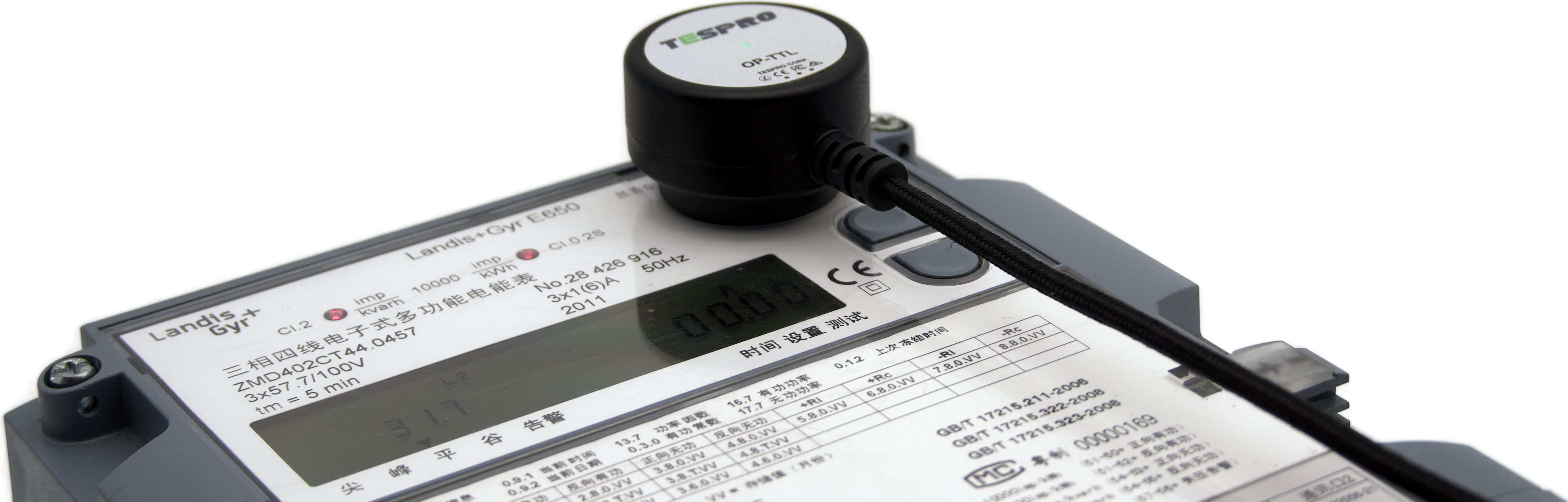

OP-TTL Optical Probe serves as an interface, communicating via infrared waves with utility meters, or any other device equipped with an optical port.

Ultrasonic welding ensures a robust housing for the product, enhancing durability and reliability.
Work with your existing device and software, no additional integration needed.
Supports transparent mode.
The infrared optical filter can block ambient light interference without compromising the device’s sensitivity to IR.

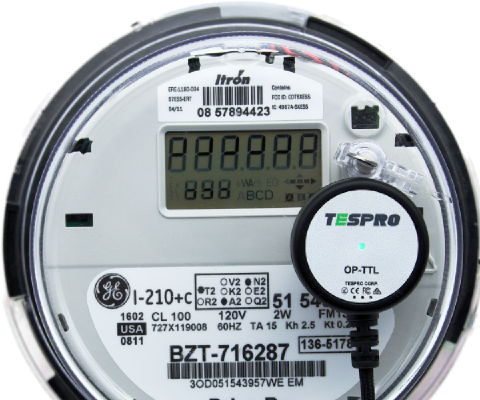

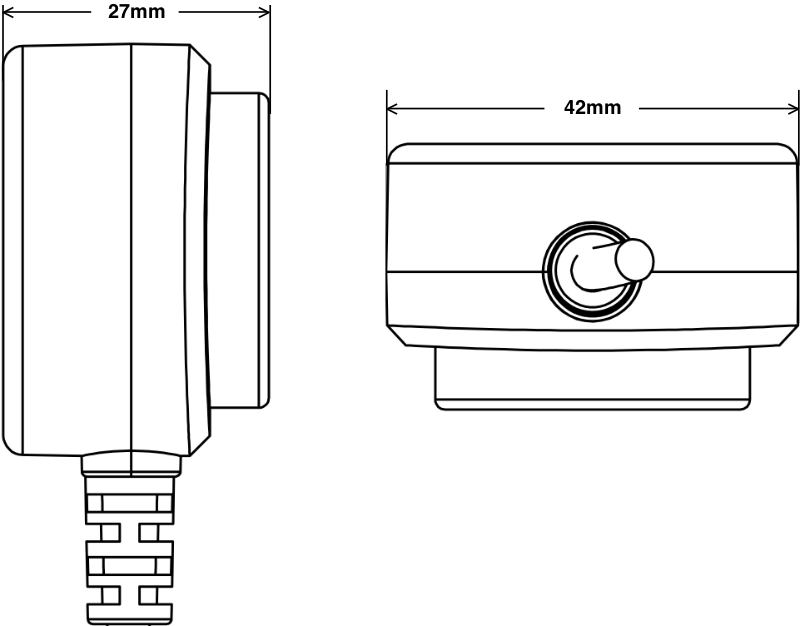

Complied with ANSI C12.18
images/products/tespro/OP-TTL-ANSI.app.png

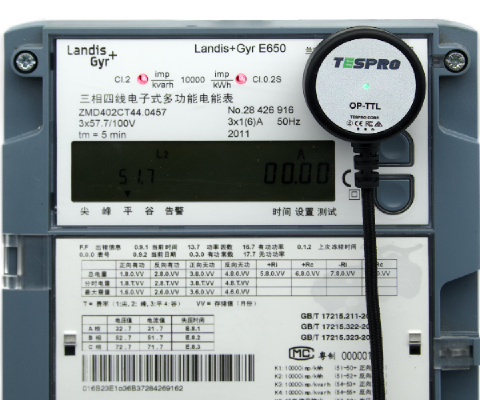

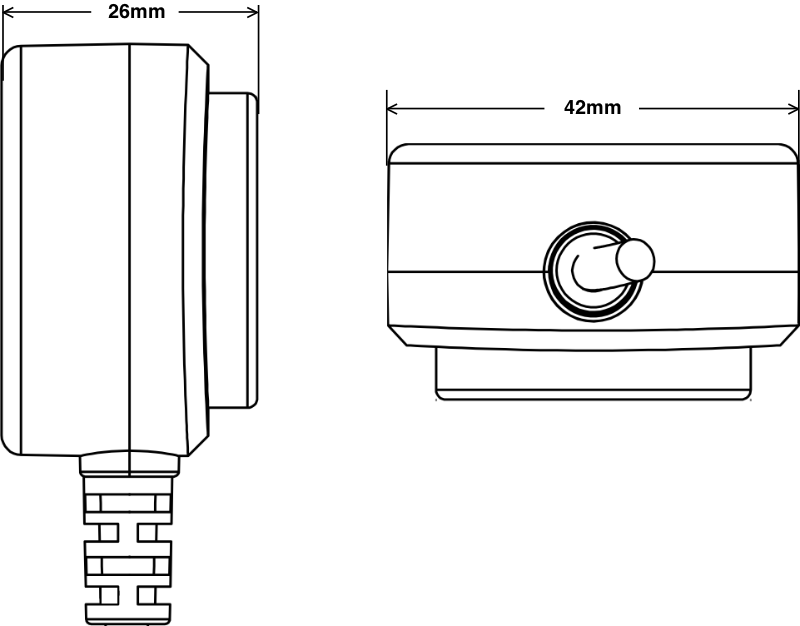

Complied with IEC 62056-21
images/products/tespro/OP-TTL-IEC.app.png


Standard	IEC 62056-21(IEC 61107) ANSI C12.18 Type 2 DLMS

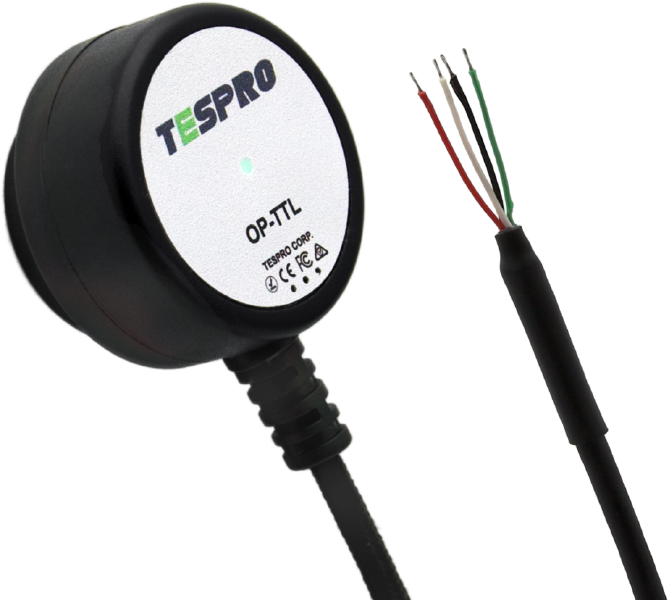

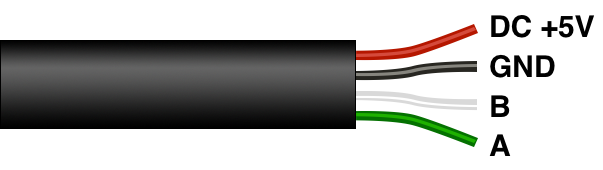

Connector	Unterminated cable by default 12 connectors available to choose from
Communication Speed	300bps ~ 57,600bps
Magnet Attachment	Magnetic Force N4.0 Complied with IEC 62056-21(IEC 61107) or ANSI C12.18
Indicators	1 Indicator with dual display: LED Red: Transmitting LED Green: Receiving
Weight	85gr
IR Radiation	940nm
IR Communication Distance	0 ~ 80mm
IR Sensor Wavelength	700~1100nm
Voltage	3.3 ~ 5V
Cable Length	2 meters (6.5 inch) cable extension available
Casing Material	Polycarbonate
Protection Class	IP67
Operating Temperature	-30°C ~ 80°C (-22°F - 176°F)
