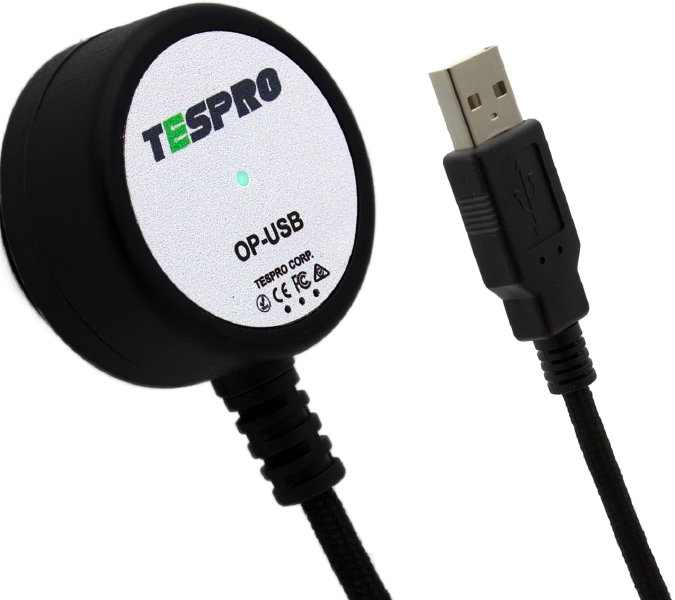

OP-USB

Optical Probe for Meter Communication

/images/products/tespro/OP-USB.hero.png

OP-USB Optical Probe serves as an interface, communicating via infrared waves with utility meters, or any other device equipped with an optical port.

  • Ultrasonic welding ensures a robust housing for the product, enhancing durability and reliability. It remains steadfast even in demanding working environments.
  • Supports transparent mode.
  • Nylon braided cable enhancing durability and reliability.
    OP-232-IEC Optical Probe on a Landis & Gyr E650 Meter
  • Build-in drivers in popular OS, no driver installation required.
  • An infrared (IR) optical filter resistant to ambient light without compromising IR sensitivity.

Supports Android, Windows, MacOS, Linux

Certifications

Models

What's the different between ansi and iec standard?

Understanding the Differences Between IEC 62056-21 and ANSI C12.18

ANSI STANDARD
 OP-USB-ANSI
 Complied with ANSI C12.18
/images/products/tespro/OP-USB-ANSI.app.png
ANSI STANDARD
 OP-USB-IEC
 Complied with IEC 62056-21
/images/products/tespro/OP-USB-IEC.app.png

Get a Free Sample

With CA$68(US$50) shipping cost, we ship requested free sample world wide.

Tehnical Specifications
Standard IEC 62056-21(IEC 61107)<br />ANSI C12.18 Type 2<br />DLMS
Connector USB-A 2.0
Communication Speed 300bps ~ 57,600bps
Magnet Attachment Magnetic Force N4.0<br />Complied with IEC 62056-21(IEC 61107) or ANSI C12.18
Indicators 1 Indicator with dual display:<br />LED Red: Transmitting<br/>LED Green: Receiving
Weight 100gr
IR Radiation 940nm
IR Communication Distance 0 ~ 80mm
IR Sensor Wavelength 700~1100nm
Voltage 3.3 ~ 5V
Cable Length 2 meters (6.5 inch)<br />cable extension available
Casing Material Polycarbonate
Protection Class IP67
Operating Temperature -30°C ~ 80°C (-22°F - 176°F)

dimension

OP-USB-IEC

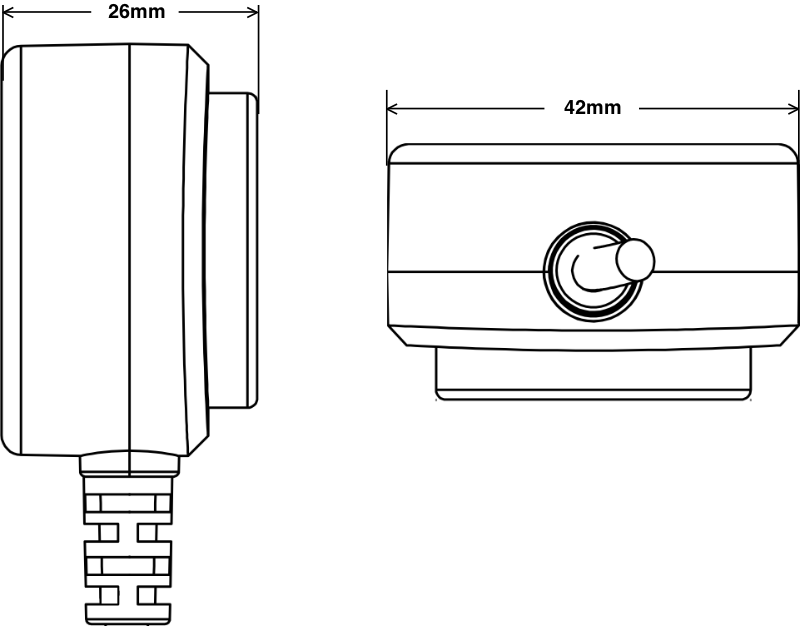

OP-USB-IEC Dimension

OP-USB-ANSI

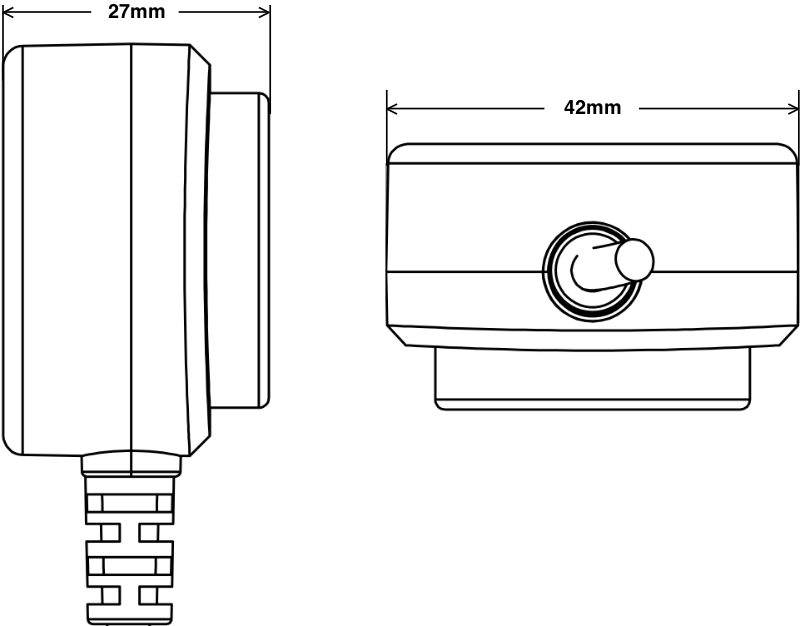

OP-USB-ANSI Dimension
