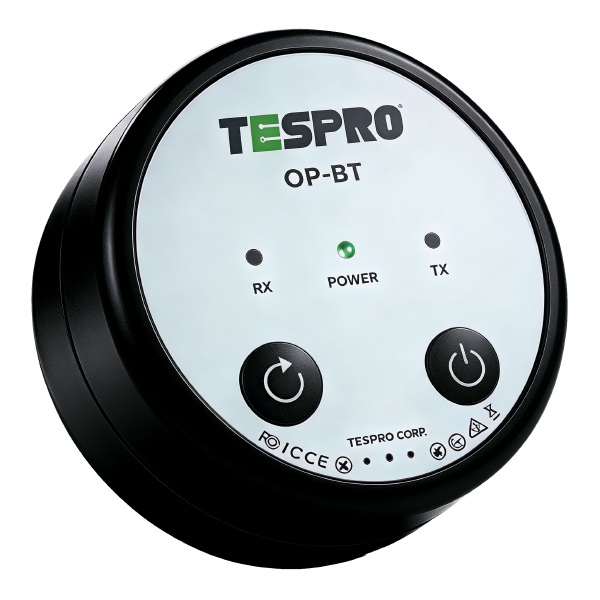

OP-BT

for Meter Communication

images/products/tespro/OP-BT.hero.png

OP-BT Bluetooth Optical Probe serves as an interface, communicating via infrared waves with utility meters, or any other device equipped with an optical port.

  • Supports transparent mode.
  • Automatically detects baud rate, by support of Mode E & Mode C.
  • High-capacity battery guarantees 100-day in hibernate mode.
  • The infrared optical filter can block ambient light interference without compromising the device’s sensitivity to IR.
  • Transmission power adjustable.
  • Battery life extended with battery protection feature.
  • Supports bluetooth renaming.
  • Simple firmware upgrade by bluetooth or USB cable.

    Download OP Manager

Bluetooth 5.0
BLE
75 Working Hours
10,000 Meters/single charge


Support Android, iOS, Windows, MacOS, Linux

Certifications

Models

What's the different between ansi and iec standard?

Understanding the Differences Between IEC 62056-21 and ANSI C12.18

ANSI STANDARD
 OP-BT-ANSI
 符合 ANSI C12.18 标准
images/products/tespro/OP-BT-ANSI.app.png
ANSI STANDARD
 OP-BT-IEC
 符合 IEC 62056-21 标准
images/products/tespro/OP-BT-IEC.app.png

技术指标
标准 IEC 62056-21(IEC 61107)与DLMS
ANSI C12.18
ANSI C12.18 Type 2
Bluetooth Standard Bluetooth 5.0
BLE+SPP
2.4G
通讯速率 300bps ~ 57,600bps
Default Baud Rate 9600bps, supports IEC dynamic baud rate
Max Communication Rang 10 Meters
磁性连接 磁性引力：N4.0
符合 IEC 62056-21(IEC 61107) 或 ANSI C12.18 标准
指示灯 3 (Power/Battery, Bluetooth Status, RX, TX)
重量 59gr
Battery Li-Po, 3.7V, 1050mAh
Battery Charging 4.5 Hours
2.5 Hours(fast charge)
Standby Hours 72 Hours
Working Hour 68 Hours
Continuous Communication 58 Hours
Hibernate Mode 100 Days
IR Radiation 940nm
红外通讯距离 0 ~ 80mm
红外接收波长 700~1100nm
电压 3.7 ~ 4.2V
Power Adapter AC 85 ~ 220V
DC 5V
电缆长度 1 meters (3 feet 3⅜ inch)
外壳材料 聚碳酸脂
Protection Class IP67
操作温度 -30°C ~ 80°C (-22°F - 176°F)
OS compatibility iOS
Android
Linux
Microsoft Windows
Mac OS X
Windows CE
USB & Driver USB Type-C
2.0 standard
Firmware Upgradable
via bluetooth or USB cable

尺寸

OP-BT-IEC

OP-BT-IEC Dimension

OP-BT-ANSI

OP-BT-ANSI Dimension
