OP-BTS

for Meter Communication

/images/products/tespro/OP-BTS.hero.png

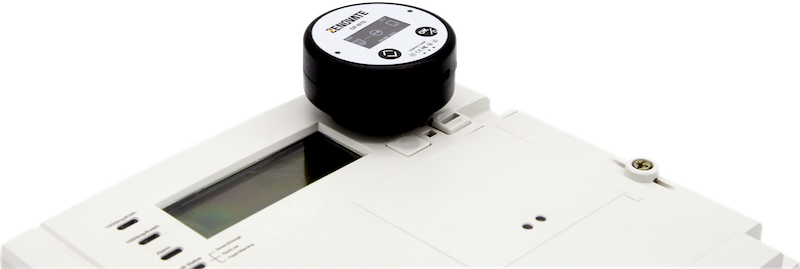

OP-BTS Bluetooth Optical Probe serves as an interface, communicating via infrared waves with utility meters, or any other device equipped with an optical port.

  • Supports transparent mode.
  • Automatically detects baud rate, by support of Mode E & Mode C.
  • High-capacity battery guarantees 100-day in hibernate mode.
  • The infrared optical filter can block ambient light interference without compromising the device’s sensitivity to IR.
  • Switch baud rate on device.
  • Transmission power adjustable.
  • Battery life extended with battery portion feature.
  • Supports bluetooth renaming.
  • Simple firmware upgrade by bluetooth or USB cable.
  • 16Mb build-in memory for data storage.

    Download OP Manager

Bluetooth 5.0
BLE
68 Working Hours
10,000 Meters/single charge
16MB Total Accessible Storage
Flashlight
By double click power button


Support Android, iOS, Windows, MacOS, Linux

Certifications

TP-BT-IEC Optical Probe

Water Proof, Dust Proof


Operational from -30° to 80°

Water Proof, Dust Proof, IP67
OP-BTS-IEC Optical Probe

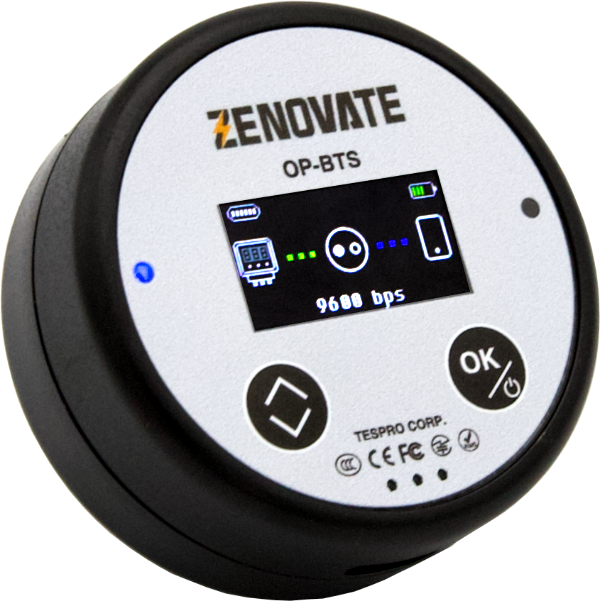

Show connections status

OP-BTS-IEC Optical Probe

Switch Baud Rate

SP-BTS-IEC Optical Probe

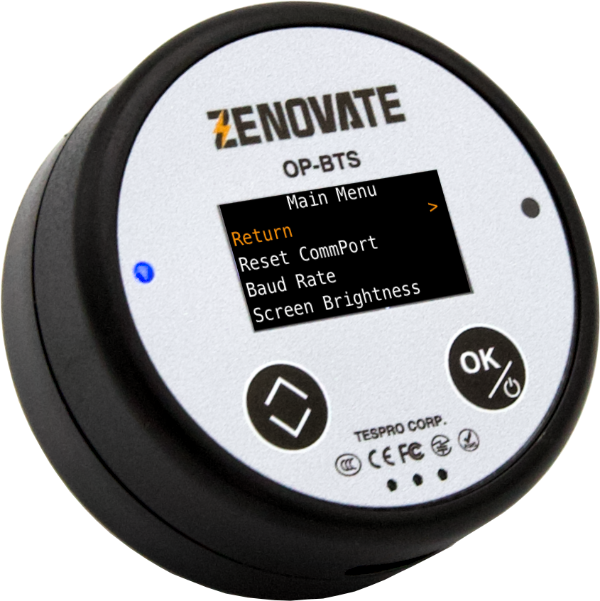

Reset Serial Port

OP-BTS-IEC Optical Probe

Adjust Transmission Power

Models

What's the different between ansi and iec standard?

Understanding the Differences Between IEC 62056-21 and ANSI C12.18

ANSI STANDARD
 OP-BTS-ANSI
 符合 ANSI C12.18 标准
/images/products/tespro/OP-BTS-ANSI.app.png
ANSI STANDARD
 OP-BTS-IEC
 符合 IEC 62056-21 标准
/images/products/tespro/OP-BTS-IEC.app.png

技术指标
标准 IEC 62056-21(IEC 61107)与DLMS<br />ANSI C12.18<br />ANSI C12.18 Type 2
Bluetooth Standard Bluetooth 5.0<br />BLE+SPP<br />2.4G
通讯速率 300bps ~ 57,600bps
Default Baud Rate 9600bps, supports IEC dynamic baud rate
Max Communication Rang 10 Meters
磁性连接 磁性引力：N4.0<br />符合 IEC 62056-21(IEC 61107) 或 ANSI C12.18 标准
指示灯 2 (Power/Battery, Bluetooth Status, RX, TX)
重量 60gr
Battery Li-Po, 3.7V, 1050mAh
Battery Charging 4.5 Hours<br />2.5 Hours(fast charge)
Standby Hours 72 Hours
Working Hour 68 Hours
Continuous Communication 58 Hours
Hibernate Mode 100 Days
IR Radiation 940nm
红外通讯距离 0 ~ 80mm
红外接收波长 700~1100nm
电压 3.7 ~ 4.2V
Power Adapter AC 85 ~ 220V<br />DC 5V
电缆长度 1 meters (3 feet 3⅜ inch)
外壳材料 聚碳酸脂
Protection Class IP67
操作温度 -30°C ~ 80°C (-22°F - 176°F)
OS compatibility iOS<br />Android<br />Linux<br />Microsoft Windows<br />Mac OS X<br />Windows CE
USB & Driver USB Type-C<br />2.0 standard
Firmware Upgradable<br />via bluetooth or USB cable

尺寸

OP-BTS-IEC

OP-BTS-IEC Dimension

OP-BTS-ANSI

OP-BTS-ANSI Dimension
