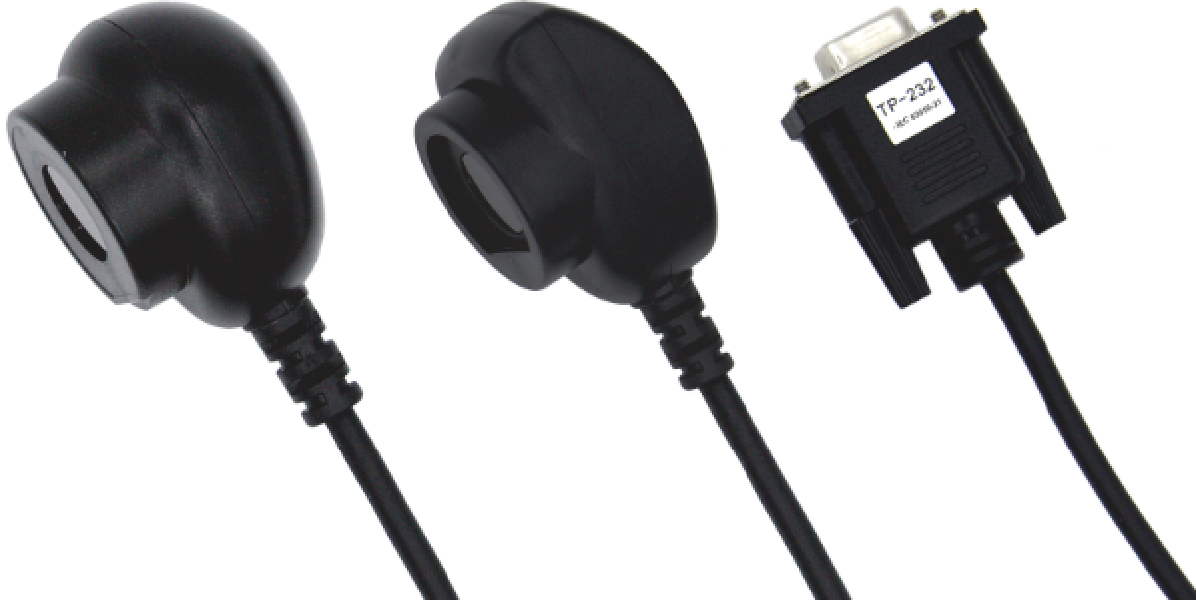

TP-232

表用通讯光电头

/images/products/tespro/TP-232.hero.png
  • TP-232 is powered from RS232 port, no external power required.
  • Ultrasonic welding ensures a robust housing for the product, enhancing durability and reliability. It remains steadfast even in demanding working environments.
  • Work with your existing device and software, no additional integration needed.
  • Supports transparent mode.
  • An infrared (IR) optical filter resistant to ambient light without compromising IR sensitivity.
  • Cable extension available.

Supports Android, Windows, MacOS, Linux

Certifications

Models

What's the different between ansi and iec standard?

Understanding the Differences Between IEC 62056-21 and ANSI C12.18

ANSI STANDARD

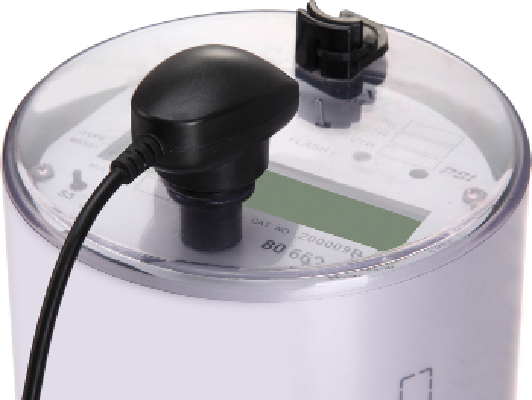

 TP-232-ANSI-N, TP-232-ANSI-S
 符合 ANSI C12.18 标准
/images/products/tespro/TP-232-ANSI.app.png
ANSI STANDARD

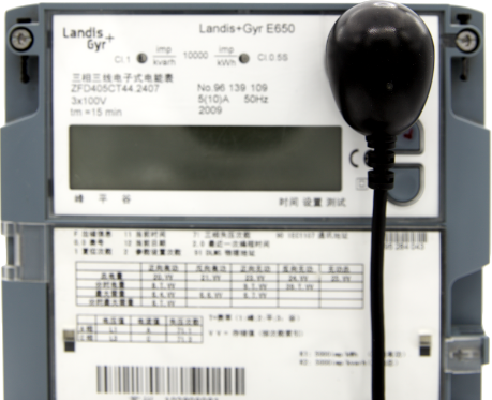

 TP-232-IEC
 符合 IEC 62056-21 标准
/images/products/tespro/TP-232-IEC.app.png

获取报价

如欲获取报价，请通过电子邮件联系我们
批量采购订单，可提供折扣价格
FAQ Regarding Price and Shipping

技术指标
标准 IEC 62056-21(IEC 61107)与DLMS<br />ANSI C12.18<br />ANSI C12.18 Type 2
接头 RS232<br />DB9 母头<br />插头可定制
通讯速率 300bps ~ 57,600bps
磁性连接 磁性引力：N4.0<br />符合 IEC 62056-21(IEC 61107) 或 ANSI C12.18 标准
指示灯 1灯双色：<br /> 红灯：发送数据<br /> 绿灯：接收数据
重量 120gr
IR Radiation 940nm
红外通讯距离 0 ~ 80mm
红外接收波长 700~1100nm
电压 3.3 ~ 5V
电缆长度 2 米（6.5 英尺）<br />电缆长度可定制
外壳材料 聚碳酸脂
防护水平 IP54
操作温度 -35°C ~ 80°C (-31°F - 176°F)

尺寸

TP-232-IEC

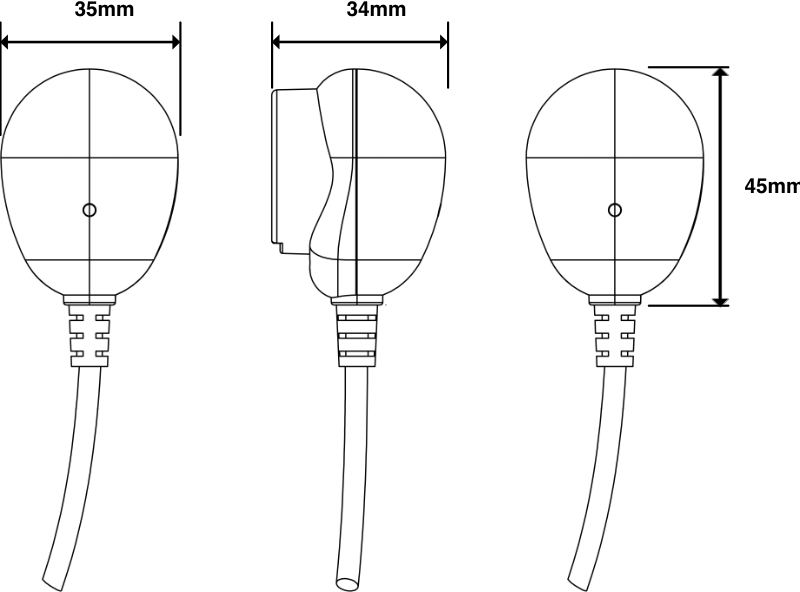

TP-232-IEC Dimension

TP-232-ANSI

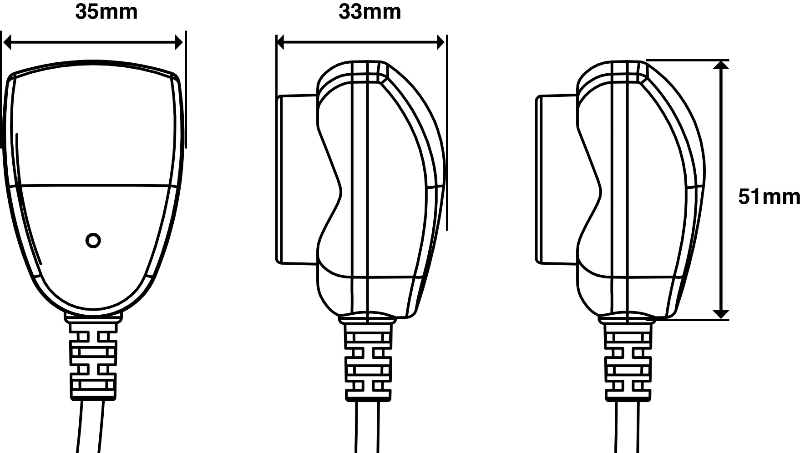

TP-232-ANSI Dimension
