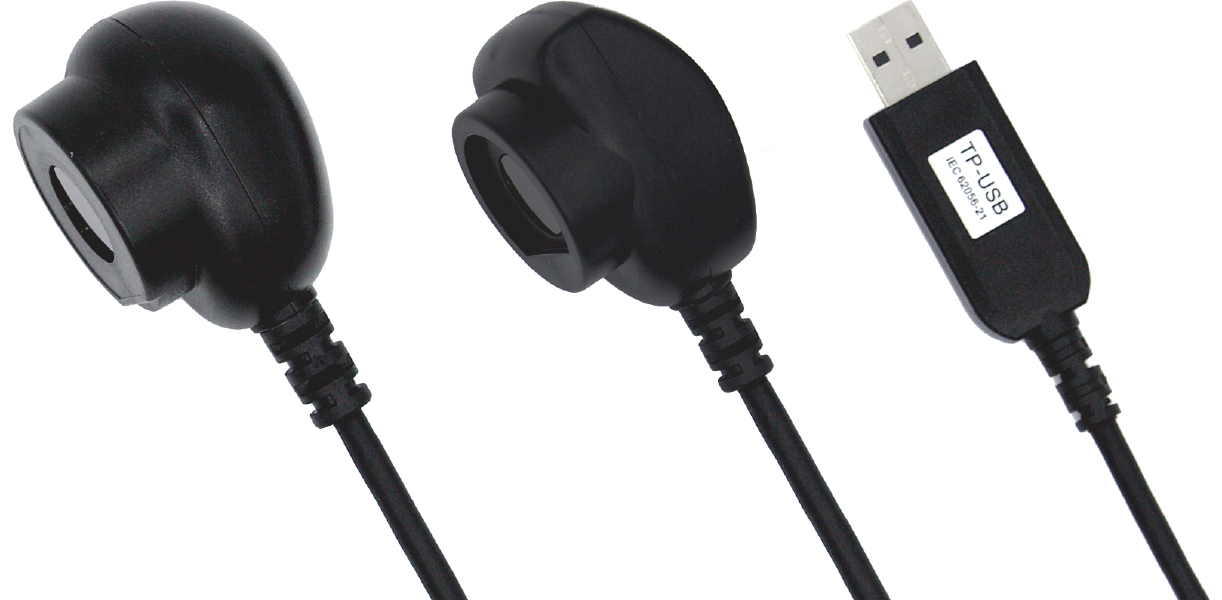

TP-USB

表用通讯光电头

/images/products/tespro/TP-USB.hero.png
  • 15 years of history, sold to more than 100+ countries, proven meter compatibilities.
  • Ultrasonic welding ensures a robust housing for the product, enhancing durability and reliability. It remains steadfast even in demanding working environments.
  • Supports transparent mode.
  • Build-in drivers in popular OS, no driver installation required.
  • An infrared (IR) optical filter resistant to ambient light without compromising IR sensitivity.
  • Logo and firmware customization available.

支持操作系统：Android, Windows, Mac OS, Linux

认证证书

Models

What's the different between ansi and iec standard?

Understanding the Differences Between IEC 62056-21 and ANSI C12.18

ANSI STANDARD
 TP-USB-ANSI-N, TP-USB-ANSI-S
 符合 ANSI C12.18 标准

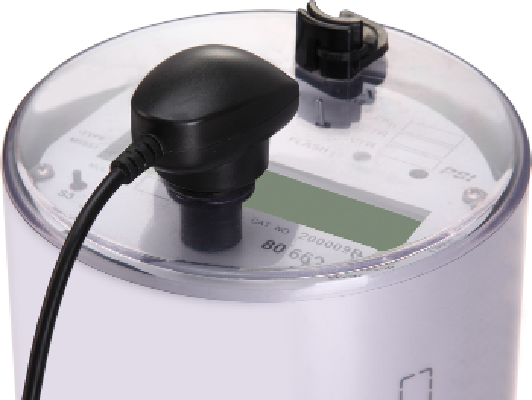

/images/products/tespro/TP-USB-ANSI.app.png
ANSI STANDARD
 TP-USB-IEC
 符合 IEC 62056-21 标准

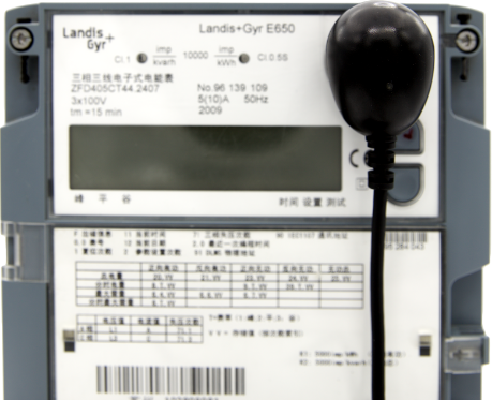

/images/products/tespro/TP-USB-IEC.app.png

免费样品

我们提供免费样品，您仅需支付运费。

技术指标
标准 IEC 62056-21(IEC 61107)与DLMS<br />ANSI C12.18<br />ANSI C12.18 Type 2
接头 USB-A 2.0
通讯速率 300bps ~ 57,600bps
磁性连接 磁性引力：N4.0<br />符合 IEC 62056-21(IEC 61107) 或 ANSI C12.18 标准
指示灯 1灯双色 <br />红灯：发送数据<br />绿灯：接收数据
重量 110克
IR Radiation 940nm
红外通讯距离 0 ~ 80mm
红外接收波长 700~1100nm
电压 5V
电缆长度 2米（6.5英尺）
外壳材料 聚碳酸脂
防护水平 IP54
操作温度 -35°C ~ 80°C (-31°F - 176°F)
定制 电缆长度可定制

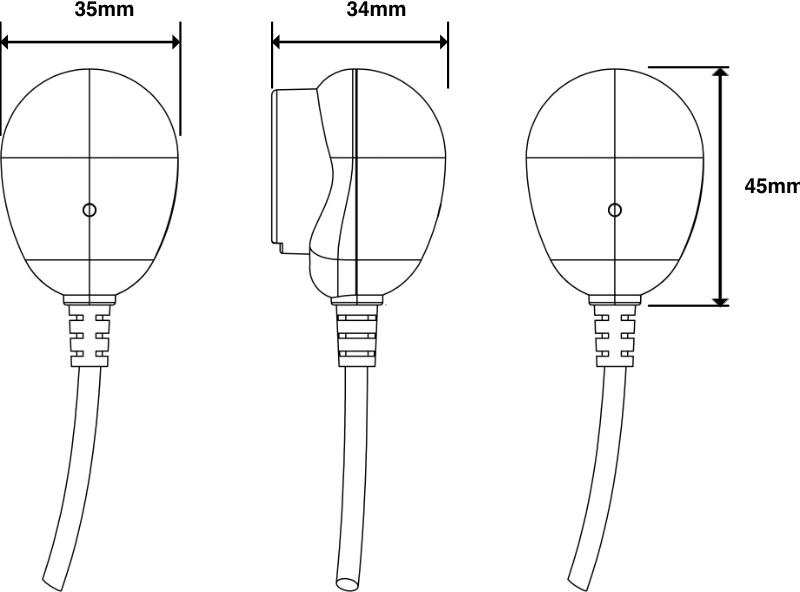

尺寸

TP-USB-IEC

TP-USB-IEC Dimension

TP-USB-ANSI

TP-USB-ANSI Dimension
