MS-ONE

Meter Power Station for Power Up Meters

images/products/tespro/MS-ONE.hero.png

Free of Wiring

Instantly Power-up

  • Designed for meter functions testing & running.
  • Meter test-run for tariff or parameters.
  • Meter on/off testing.
  • Support each phase voltage and current on/off test operation.
  • Check meters for open/shorted elements.
  • Support A+/A- load operation by switching.
  • 6 digital displays provide active measurements.
  • Single phase Powered, three phase configuration Testing.
  • Safety guaranteed, instant power-off when meter removed.
  • IEC 62056-21 Compatible.
  • Modular meter adaptor.
  • Compatible with all IEC standard meter connectors.
  • Support both single phase meter and three phase meter.

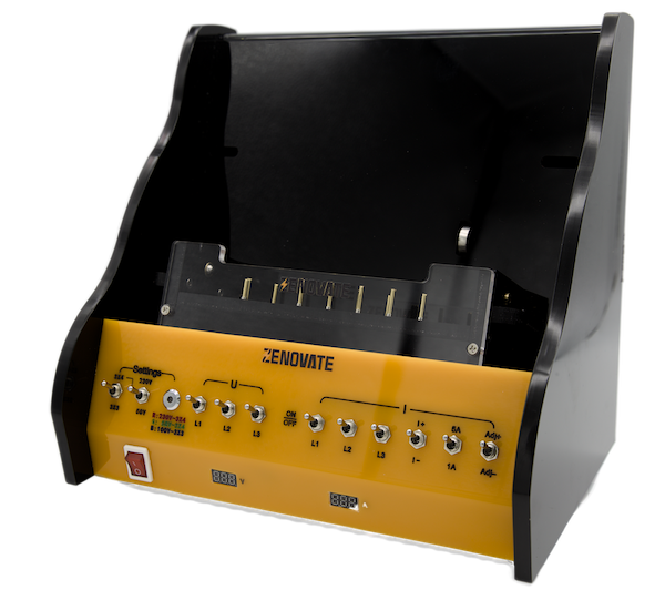

Control Panel

Modular Design

Easily removable meter adaptor supports all IEC standard meters with one meter station.

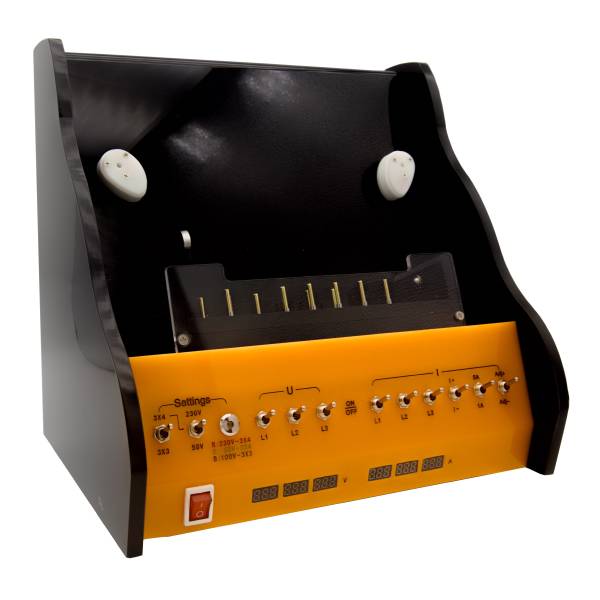

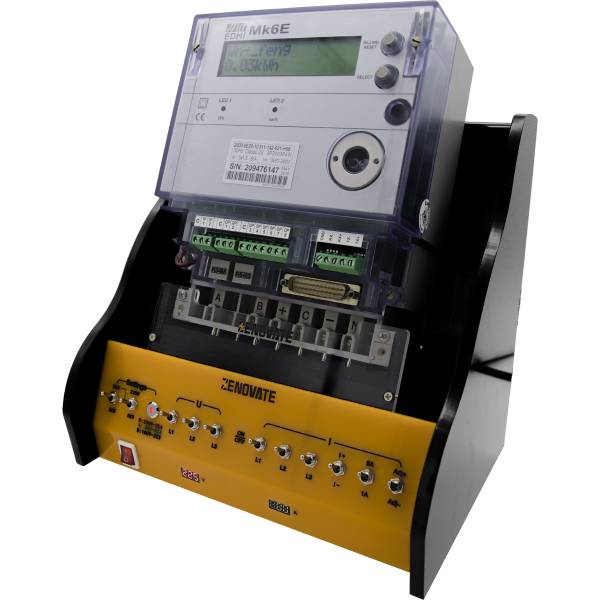

Photos

Contact Us for Price

Email us to get the quote.

Discount price available for bulk purchase.

Tehnical Specifications

Standard IEC 62056-21(IEC 61107) & DLMS compliant
ANSI C12.18
ANSI C12.18 Type 2
Compatibility IEC 62056-21(IEC 61107) compliant
Max-weight for meter 190mm
Input 220-240v, 50Hz/60Hz, Single Phase
Output 3p4w (58v×3, 230v×3)
3p3w (100v)
Supported Meter Types 3P4W  3P3W  Single-phase
Operational Current 5A, 1A
Current Direction A+  A-
Display LED, 6 displays
Case Material Plexiglass
Module Material Bakelite
Insulation Voltage 2500VAC/1min
Fuse Specification 0.2A/250V
Weight 3,190gr
Module Weight 498.9gr
Dimensions 266x196x252 ( L x W x H )
Operating Temperature -20~70℃
Operating Humidity ≤95%RH
Storage Temperature -20~70℃
Storage Humidity 30~70%
Power Cord Specification 10A/250v, 1.5m

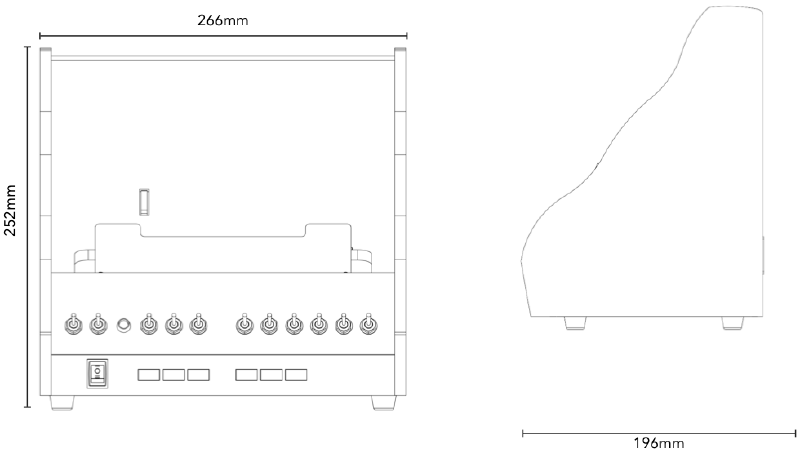

dimension

 Dimension
