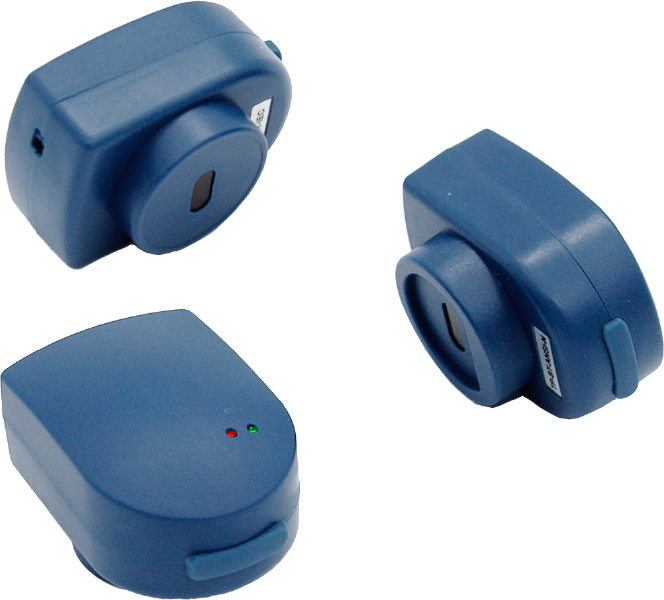

TP-BT

Bluetooth Optical Probe for Meter Communication

images/products/tespro/TP-BT.hero.png

TP-BT Bluetooth Optical Probe serves as an interface, communicating via infrared waves with peripheral devices such as electricity meters, water meters, heat meters, gas meters, or any other device equipped with an optical port.

  • Work with your existing software, no additional integration needed.
  • Supports transparent mode.
  • Automatically detection of baud rate, through support of Mode E & Mode C.
  • High-capacity battery enables reading for up to 100,000 meters on a single charge.
  • An infrared (IR) optical filter resists to ambient light without compromising IR sensitivity.

Supports iOS, Android, Windows, MacOS, Linux

Certifications

Models

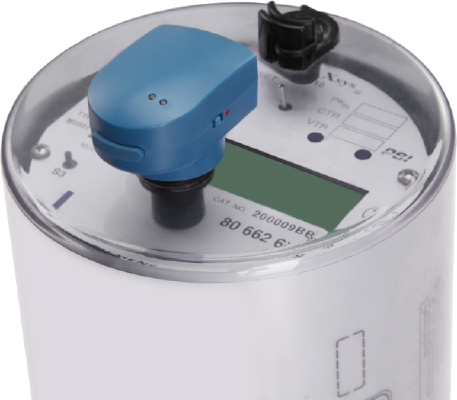

ANSI STANDARD
 TP-BT-ANSI-N, TP-BT-ANSI-S
 Complied with ANSI C12.18

images/products/tespro/TP-BT-ANSI.app.png
ANSI STANDARD

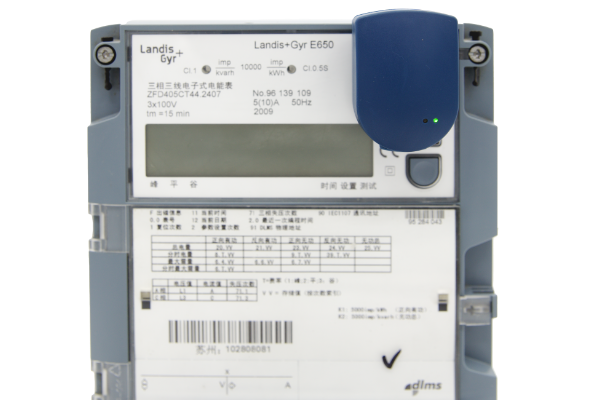

 TP-BT-IEC
 Complied with IEC 62056-21

images/products/tespro/TP-BT-IEC.app.png

Get a Free Sample

With CA$68(US$50) shipping cost, we ship requested free sample world wide.

Tehnical Specifications

Standard IEC 62056-21(IEC 61107) & DLMS compliant
ANSI C12.18
ANSI C12.18 Type 2
Bluetooth Standard Bluetooth 4.0
BLE
2.4G
Communication Speed 300bps ~ 57,600bps
Default Baud Rate 9600bps, supports IEC dynamic baud rate
Max Communication Range 10 Meters
Magnet Attachment Magnetic Force N4.0
Complied with IEC 62056-21(IEC 61107) or ANSI C12.18
Indicators LED Red: Charging
LED Green: Power On / Battery Full
LED Blue: Communication in progress
Weight 200gr
Battery Li-Po, 3.7V, 800mAh
Battery Charging 4 Hours (From 0 to 100%)
Working Hour 39 Hours, read 10,000 Meters/single charge
Continuous Conversation 27 hours
IR Radiation 940nm
IR Communication Distance 0 ~ 80mm
IR Sensor Wavelength 700~1100nm
Voltage 3.7 ~ 4.2V
Power Adapter AC 85 ~ 220V
DC 5V
Cable Length 1 meters (3 feet 3⅜ inch)
Casing Material Polycarbonate
Water Proof IP54
Operating Temperature -15°C ~ 80°C (5°F - 176°F)
OS compatibility iOS
Android
Linux
Microsoft Windows
Mac OS X
Windows CE
USB & Driver USB 2.0 standard
Firmware Upgradable
Customization Cable extension available

dimension

TP-BT
