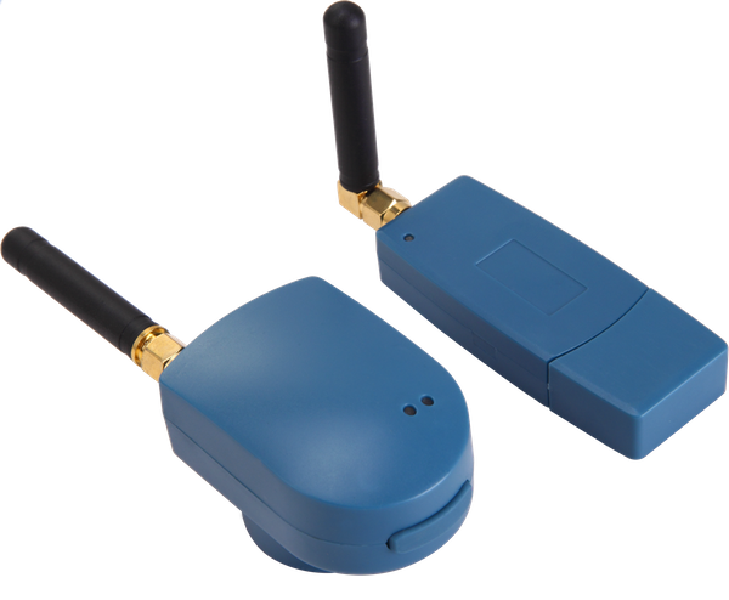

TP-RF

Wireless Optical Probe for Meter Communication

images/products/tespro/TP-RF.hero.png

TP-RF Bluetooth Optical Probe serves as an interface, communicating via infrared waves with peripheral devices such as electricity meters, water meters, heat meters, gas meters, or any other device equipped with an optical port.

  • Work with your existing software, no additional integration needed.
  • Supports transparent mode.
  • Automatically detection of baud rate, through support of Mode E & Mode C.
  • High-capacity battery enables reading for up to 100,000 meters on a single charge.
  • An infrared (IR) optical filter resists to ambient light without compromising IR sensitivity.

Models

ANSI STANDARD
 TP-RF-ANSI-N, TP-RF-ANSI-S
 Complied with ANSI C12.18

ANSI STANDARD
 TP-RF-IEC
 Complied with IEC 62056-21

Contact Us for Price

Email us to get the quote.

Discount price available for bulk purchase.

Tehnical Specifications

Standard IEC 62056-21(IEC 61107) & DLMS compliant
ANSI C12.18
ANSI C12.18 Type 2
Radio Frequency 400MHz/900MHz/2.4GHz available
Communication Speed 300bps ~ 57,600bps
Default Baud Rate 9600bps, supports IEC dynamic baud rate
Max Communication Range 100 Meters
Magnet Attachment Magnetic Force N4.0
Complied with IEC 62056-21(IEC 61107) or ANSI C12.18
Indicators LED Red: Charging
LED Green: Power On / Battery Full
LED Blue: Communication in progress
Battery Li-Po, 3.7V, 800mAh, 20 hours
Battery Charging 4 Hours (From 0 to 100%)
IR Radiation 940nm
IR Communication Distance 0 ~ 80mm
IR Sensor Wavelength 700~1100nm
Voltage 3.7 ~ 4.2V
Charger AC 85 ~ 220V
DC 5V
Cable Length 1 meters (3 feet 3⅜ inch)
Casing Material ABS
Water Proof IP54
Operating Temperature -15°C ~ 80°C (5°F - 176°F)
OS compatibility iOS
Android
Linux
Microsoft Windows
Mac OS X
Windows CE
USB & Driver USB 2.0 standard
Firmware Upgradable
Customization Cable extension available
