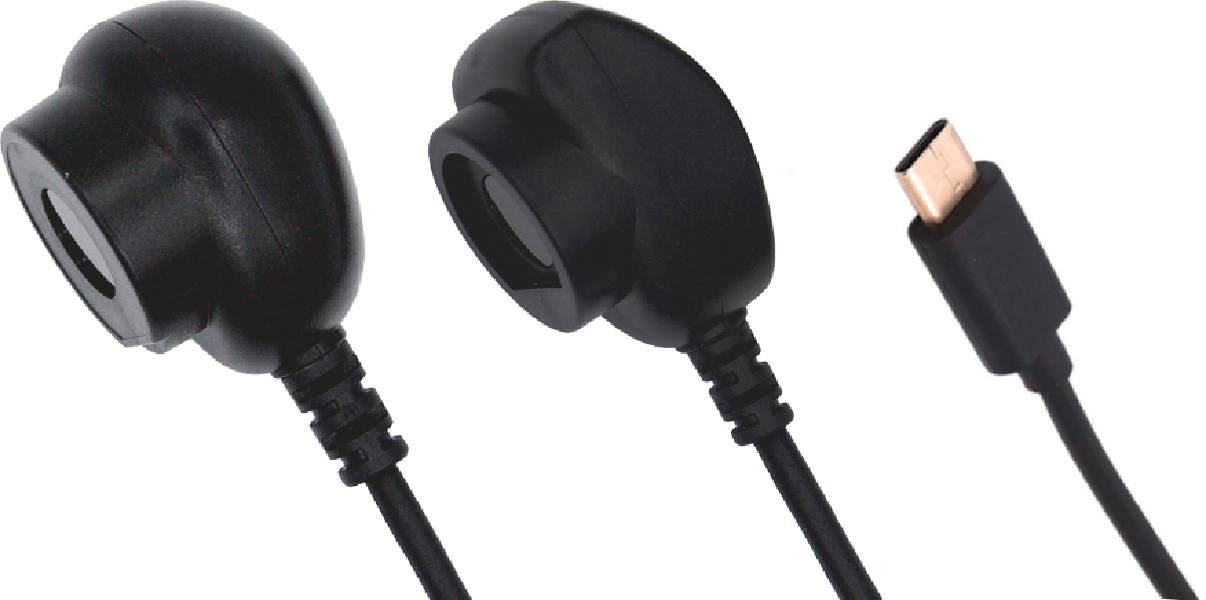

TP-TypeC

Optical Probe for Meter Communication

images/products/tespro/TP-TypeC.hero.png
  • 15 years of history, sold to more than 100 countries, proven meter compatibilities.
  • Ultrasonic welding ensures a robust housing for the product, enhancing durability and reliability. It remains steadfast even in demanding working environments.
  • Supports transparent mode.
  • Build-in drivers in popular OS, no driver installation required.
  • An infrared (IR) optical filter resists to ambient light without compromising IR sensitivity.
  • Cable extension available.

Supports iOS, Android, Windows, MacOS, Linux

Certifications

Models

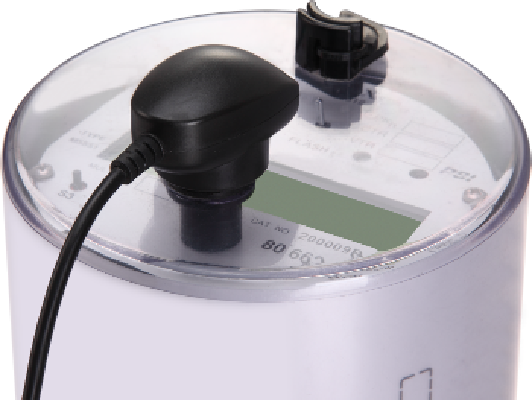

ANSI STANDARD
 TP-TypeC-ANSI-N, TP-TypeC-ANSI-S
 Complied with ANSI C12.18

images/products/tespro/TP-TypeC-ANSI.app.png
ANSI STANDARD

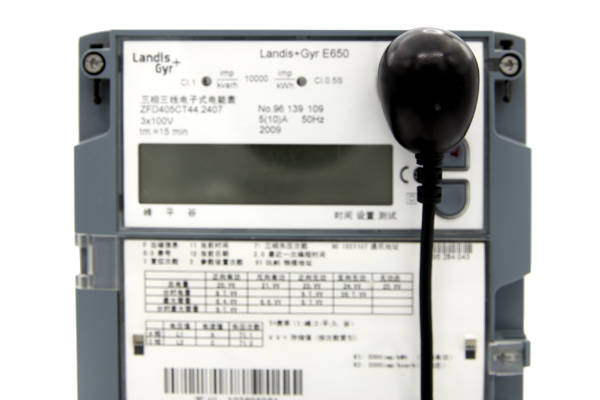

 TP-TypeC-IEC
 Complied with IEC 62056-21

images/products/tespro/TP-TypeC-IEC.app.png

Get a Free Sample

With CA$68(US$50) shipping cost, we ship requested free sample world wide.

Tehnical Specifications

Standard IEC 62056-21(IEC 61107) & DLMS compliant
ANSI C12.18
ANSI C12.18 Type 2
Connector USB-C 2.0
Communication Speed 300bps ~ 57
600bps
Magnet Attachment Magnetic Force N4.0
Complied with IEC 62056-21(IEC 61107) or ANSI C12.18
Indicators 1 Indicator with dual display:
LED Red: Transmitting
LED Green: Receiving
Weight 75gr
IR Radiation 940nm
IR Communication Distance 0 ~ 80mm
IR Sensor Wavelength 700~1100nm
Voltage 5V
Cable Length 2 meters (6.5 inch)
Casing Material Polycarbonate
Protection Class IP67
Operating Temperature -30°C ~ 80°C (-22°F - 176°F)
Customization Cable extension available.

dimension

TP-TypeC-IEC

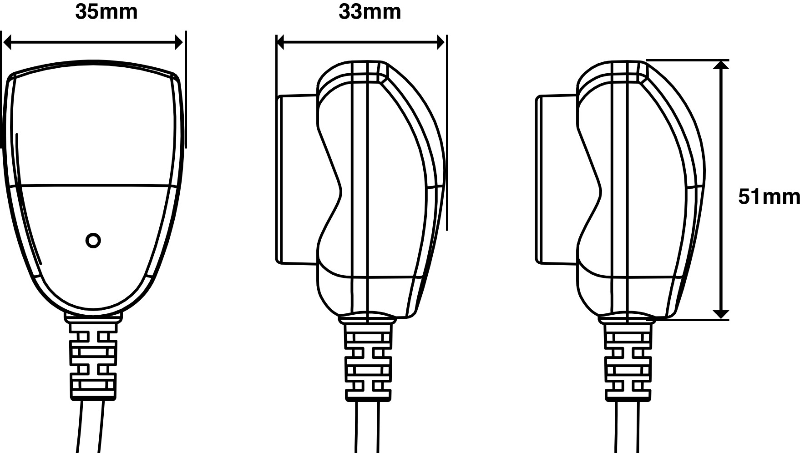

TP-TypeC-IEC Dimension

TP-TypeC-ANSI

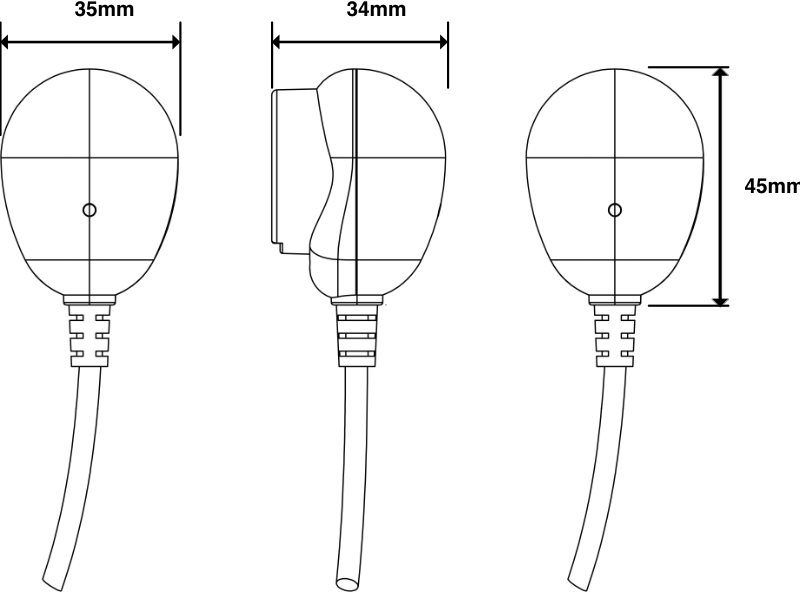

TP-TypeC-ANSI Dimension
