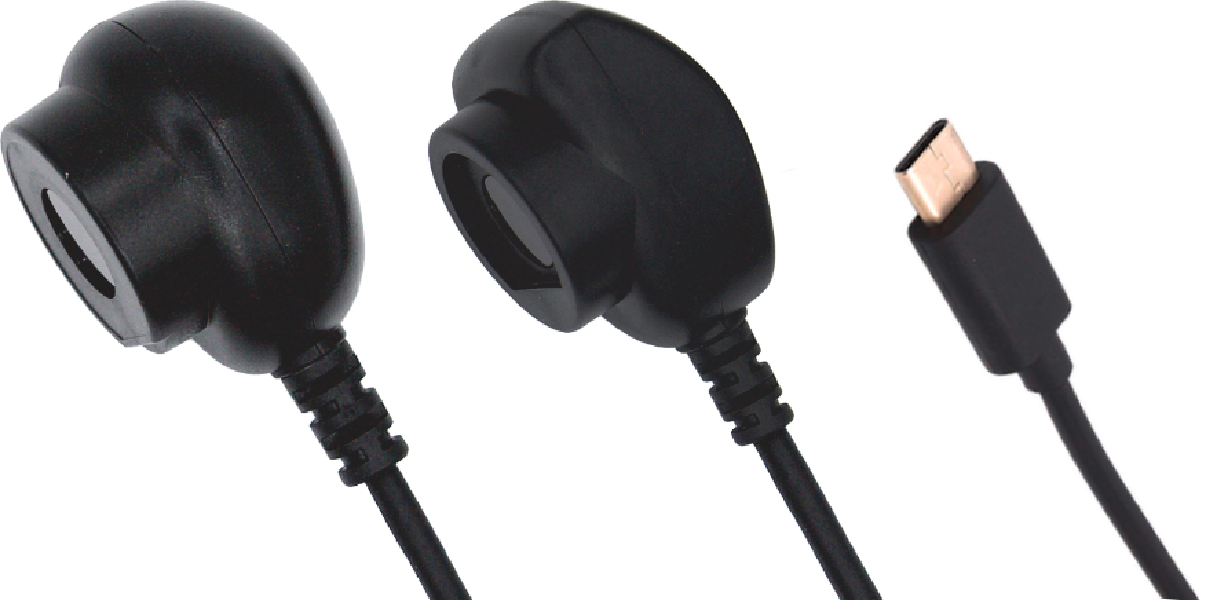

TP-TYPEC

表用通讯光电头

images/products/tespro/TP-TypeC.hero.png
  • 15 years of history, sold to more than 100+ countries, proven meter compatibilities.
  • Ultrasonic welding ensures a robust housing for the product, enhancing durability and reliability. It remains steadfast even in demanding working environments.
  • Supports transparent mode.
  • Build-in drivers in popular OS, no driver installation required.
  • An infrared (IR) optical filter resistant to ambient light without compromising IR sensitivity.
  • Cable extension available.

Supports iOS, Android, Windows, MacOS, Linux

Certifications

Models

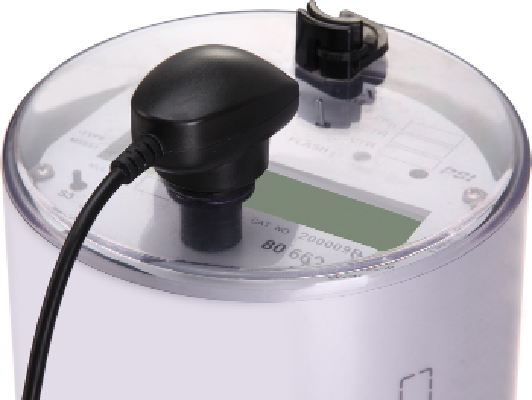

ANSI STANDARD
 TP-TYPEC-ANSI-N, TP-TYPEC-ANSI-S
 符合 ANSI C12.18 标准

images/products/tespro/TP-TypeC-ANSI.app.png
ANSI STANDARD
 TP-TYPEC-IEC
 符合 IEC 62056-21 标准

images/products/tespro/TP-TypeC-IEC.app.png

免费样品

我们提供免费样品,您仅需支付运费。

技术指标

标准 IEC 62056-21(IEC 61107)与DLMS
ANSI C12.18
ANSI C12.18 Type 2
接头 USB-C 2.0
通讯速率 300bps ~ 57
600bps
磁性连接 磁性引力:N4.0
符合 IEC 62056-21(IEC 61107) 或 ANSI C12.18 标准
指示灯 1灯双色
红灯:发送数据
绿灯:接收数据
重量 75gr
IR Radiation 940nm
红外通讯距离 0 ~ 80mm
红外接收波长 700~1100nm
电压 5V
电缆长度 2米(6.5英尺)
外壳材料 聚碳酸脂
Protection Class IP67
操作温度 -30°C ~ 80°C (-22°F - 176°F)
定制 电缆长度可定制

尺寸

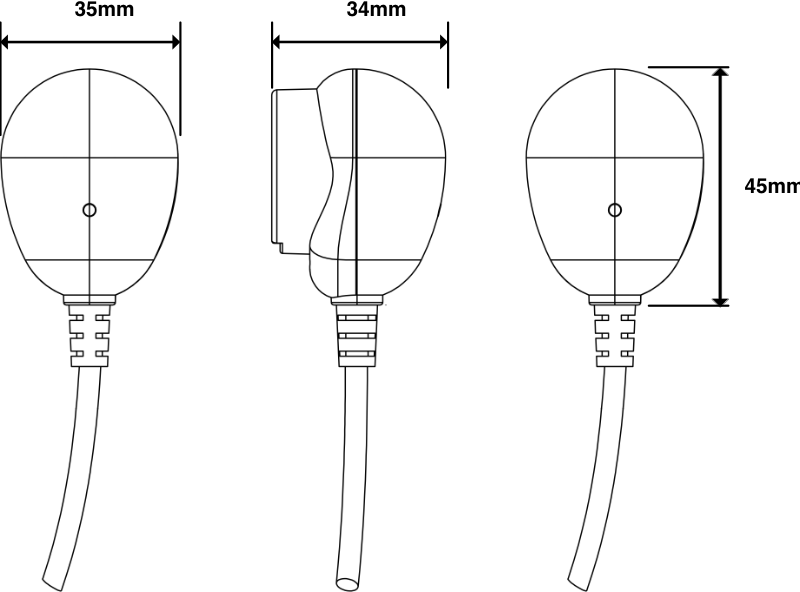

TP-TYPEC-IEC

TP-TYPEC-IEC Dimension

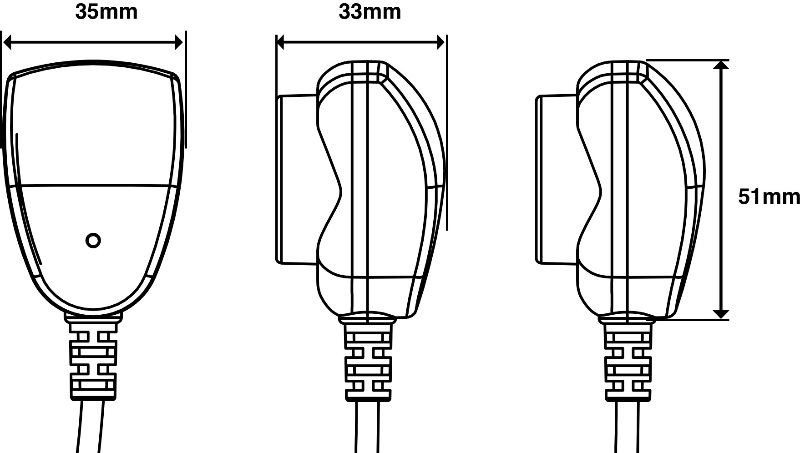

TP-TYPEC-ANSI

TP-TYPEC-ANSI Dimension
